|Disc Type Wood Chipper
High-Performance Disc Type Wood Chipper for Material Handling
The Disc Type Wood Chipper is a heavy-duty machine designed for reducing wood logs, branches, slabs, and veneer waste into uniform wood chips. It uses a high-speed rotating disc fitted with knives to cut wood into consistent sizes, making it ideal for plywood industries, biomass fuel preparation, and paper/pulp plants
Construction & Working Principle
- Cutting Disc: Heavy-duty steel disc with knives mounted
- Knives/Blades: 2–4 hardened alloy steel knives, reversible design
- Anvil/Counter Knife: Works with disc knives for cutting
- Feeding System: Manual, gravity, or hydraulic feed rollers
- Output: Adjustable chip size (10–50 mm)
- Drive: Electric motor or diesel engine with belt/gear drive
Key Features
- Heavy-duty fabricated steel body
- Dynamic balanced disc for vibration-free operation
- High throughput with uniform chip size
- Adjustable chip size from 10–50 mm
- Easy replacement of knives
- Suitable for logs, branches, veneer, and slabs
- Low maintenance and robust construction
Technical Specifications – Sample Models
| Model | Disc Diameter | No. of Knives | Log Input Size | Capacity | Power Required | Feeding System |
|---|---|---|---|---|---|---|
| TDWC-600 | 600 mm | 2 | Up to 150 mm | 2–3 TPH | 30–40 HP | Manual Feed |
| TDWC-1000 | 1000 mm | 3 | Up to 250 mm | 5–6 TPH | 60–80 HP | Hydraulic Feed |
| TDWC-1500 | 1500 mm | 4 | Up to 350 mm | 8–10 TPH | 100–120 HP | Hydraulic Feed |
Applications
- Pulp & Paper industry (wood chips for pulping)
- Biomass power plants (fuel preparation)
- Wood veneer & plywood units
- Particle board & MDF industry
- Commercial firewood preparation
Gallery – Disc Type Wood Chipper
- Industrial Horizontal-Fed Disc Chipper
- Compact Small-Scale Disc Chipper
- Factory Installed Disc Chipper

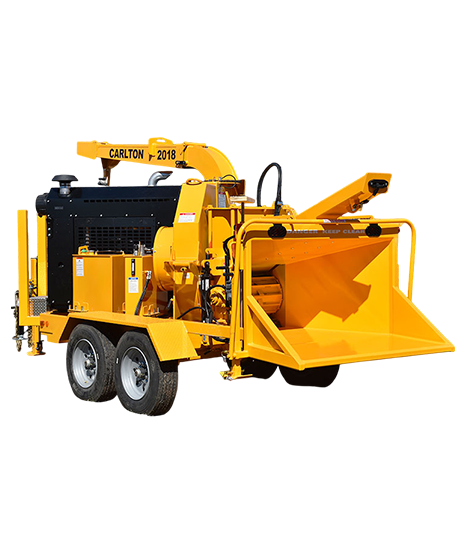

- Mobile Portable Disc Chipper
