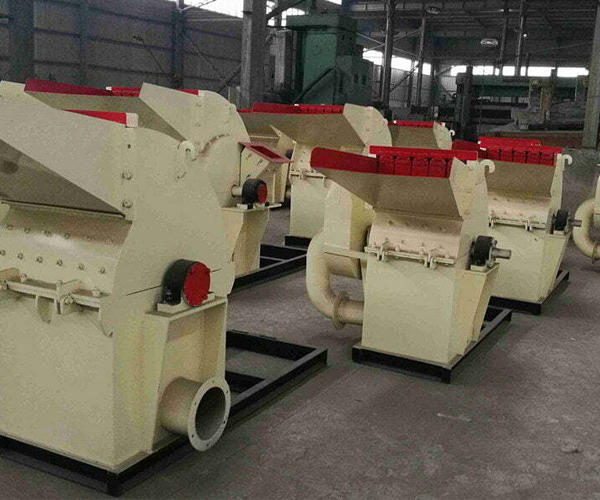

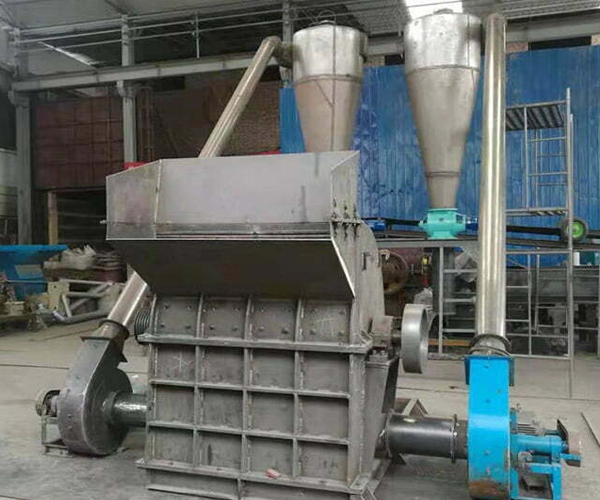

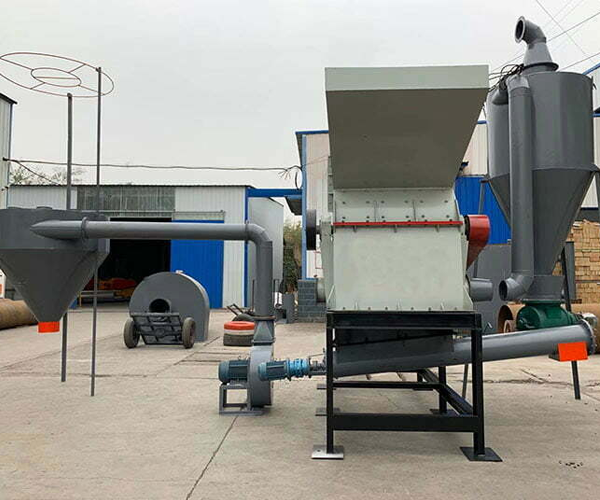

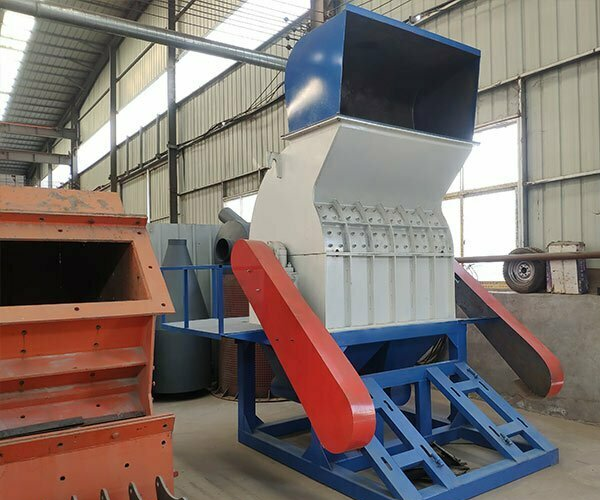

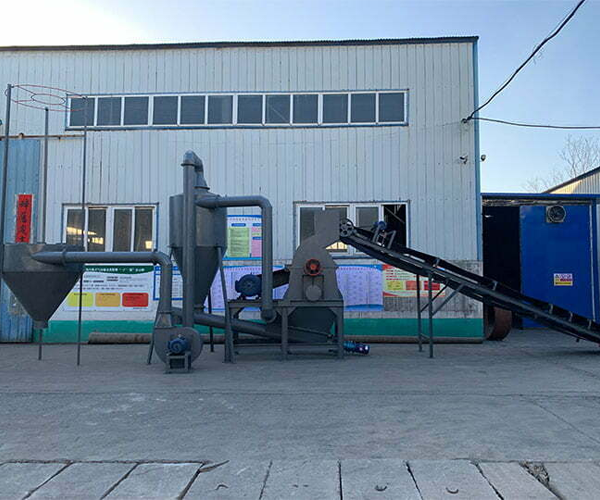

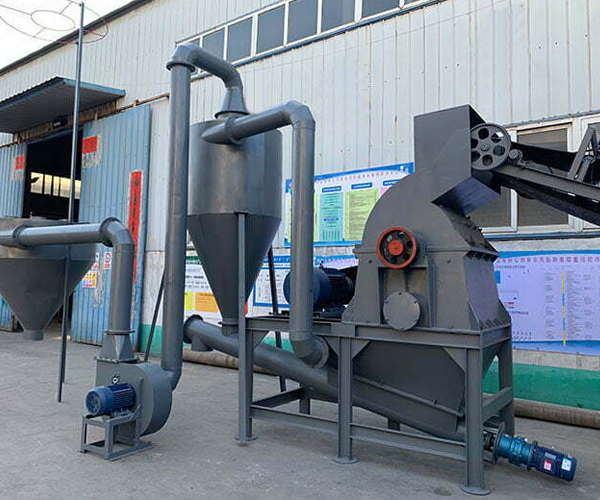

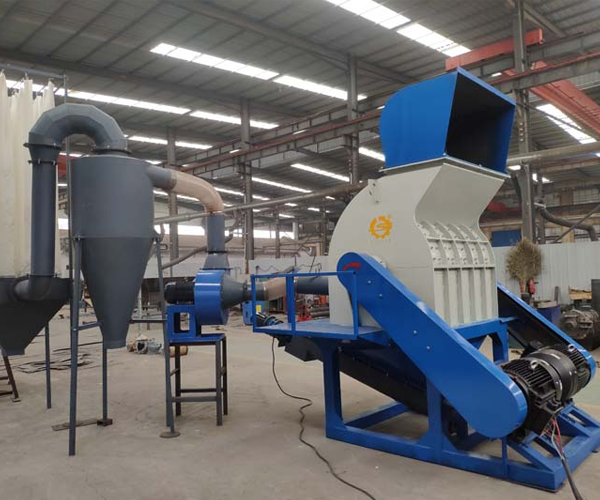

|Wood Crusher Hammer Mill Machine

High-Performance Wood Crusher Hammer Mill Machine for Material Handling

The Wood Crusher Machine is designed to crush logs, branches, bamboo, and agricultural residues into fine wood chips or sawdust. It uses high-speed blades and hammers along with mesh screens to produce uniform particle sizes, typically ranging from 3 mm to 20 mm.

Key Features & Advantages

  • Compact, durable construction
  • Adjustable screen mesh (3 mm – 20 mm)
  • Processes logs up to 50 cm diameter
  • High efficiency, low dust output
  • Applications: Biomass fuel, charcoal, pellets, paper mills, animal bedding, mushroom compost

Technical Specifications – Example Models

Model Power Capacity Blade Diameter Blade Qty Inlet Size
SL-C-420 7.5–11 kW 500–800 kg/h 420 mm 4 Standard
SL-C-500 11–18.5 kW 1,000–1,500 kg/h 500 mm 4 Standard
SL-C-700/900 30–45 kW 3,000–5,000 kg/h 600–750 mm 4–8 Standard

Working Principle

Raw material is fed into the inlet. Blades cut the wood into smaller pieces, which are then pulverized by high-speed hammers. The output passes through a screen mesh to ensure consistent particle size.

Applications

Wood crusher machines are widely used in industries such as biomass briquette production, pellet making, charcoal processing, artificial boards, paper mills, mushroom cultivation, and animal bedding
