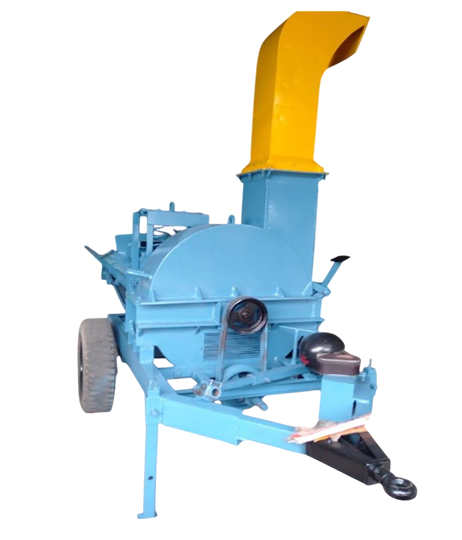

Techno Engineering Hub presents durable Tractor-Operated Wood Chippers, proudly built in Punjab. These PTO-driven machines are designed for agriculture, forestry, and recycling applications, providing efficient chipping capacity of up to 3 tons/hour. Built with heavy-duty mild steel, wear-resistant blades, and reliable PTO compatibility, they are cost-effective and suitable for Indian farming conditions.
| Specification | Details |
|---|---|
| Drive | Tractor PTO Driven |
| Output Capacity | 2.5 to 3 tons/hour |
| Chip Sizes | 8 mm, 10 mm, 12 mm (customizable) |
| Shaft Speed | 840–900 RPM |
| Max Wood Diameter | 200 mm (8 inch) |
| Blades | 6 pcs, Mild Steel |
| Dimensions | 16 ft × 6.5 ft × 10 ft |
| Weight | Approx. 1 ton |
| Chassis | MS Frame with wheels & conveyor (14" × 8 ft) |
| Warranty | 4 months (Punjab Region) |
The chipper connects to the tractor’s PTO. Once engaged, branches and wood waste are fed into the hopper. The rotating shaft with blades cuts the wood into uniform chips, which are discharged through an outlet chute. Chip size can be controlled by adjusting the feed speed and knife projection.
